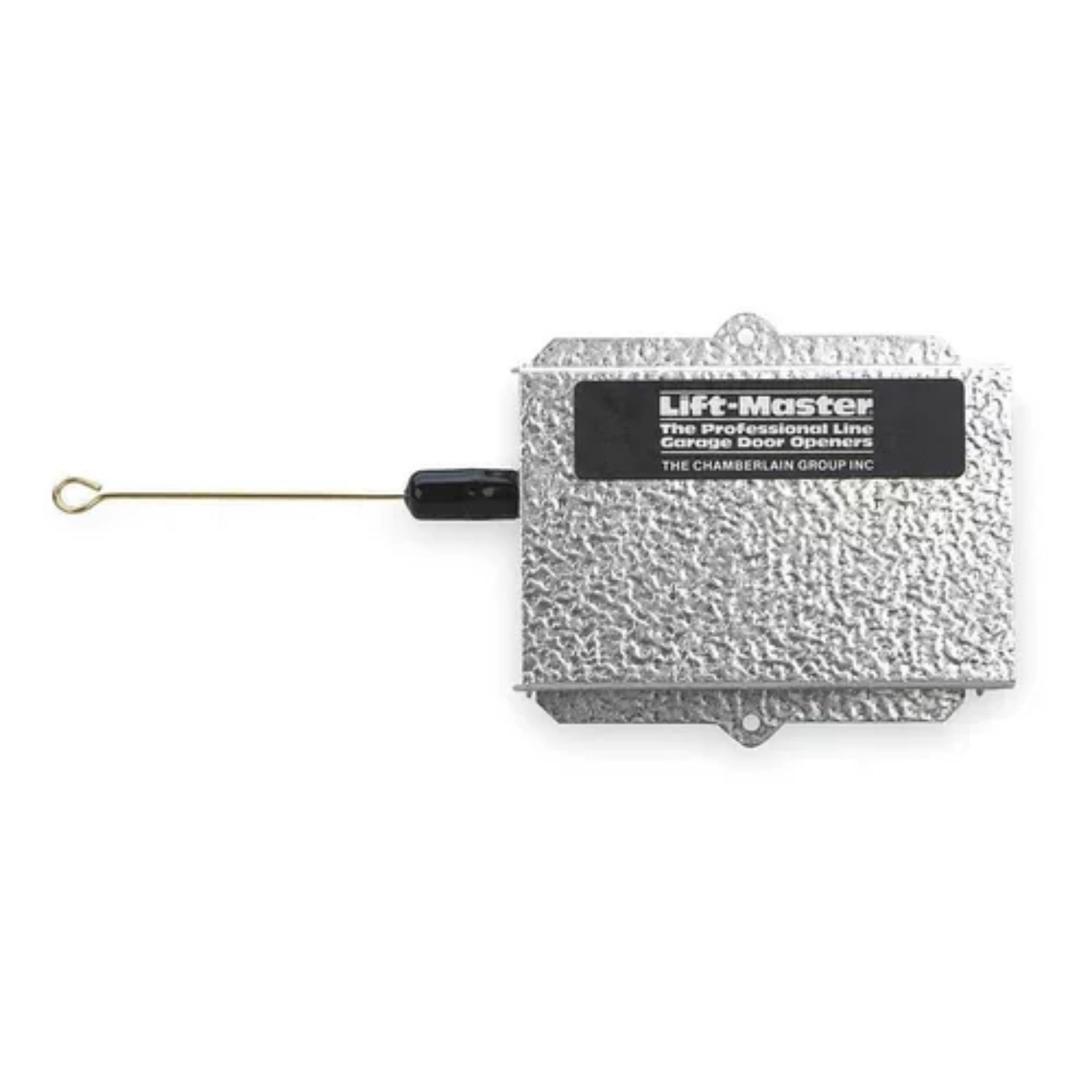

LM RADIO RECEIVER - 390MHZ

• 390 MHz Receiver: diseñado para sistemas de radio LIFTMASTER de 390 MHz compatibles.
• Security+ Compatibility: trabaja con transmisores Security+ rolling-code de 390 MHz compatibles.
• High Security Mode: permite almacenar hasta 15 rolling-code transmitters o passwords compatibles.
• Normal Security Mode: permite almacenar hasta 31 transmisores compatibles de la generación correspondiente.
• DIP-Switch Support: puede trabajar con determinados transmisores DIP-switch 390 MHz, como el 61LM, en modo NORMAL compatible.
• Selectable Power: permite configurar la alimentación para 12VDC o 24V-class AC/DC.
• Momentary Output: genera un pulso corto para iniciar una función del operador.
• Constant Output: permite mantener el relay activo durante la transmisión en aplicaciones comerciales apropiadas.
• Learn Programming: incorpora Learn Button e indicador para programación y borrado de transmisores.
• Retrofit Application: permite incorporar radio 390 MHz a operadores con entradas de control compatibles.

• Tipo de producto: Universal Radio Receiver
• Marca: LIFTMASTER
• Modelo / SKU: 412HM
• RF Frequency: 390 MHz
• Radio Technology: Security+ / Compatible Legacy 390 MHz Formats
• High Security Capacity: Up to 15 Rolling-Code Transmitters or Passwords
• Normal Security Capacity: Up to 31 Compatible Transmitters
• Power: 12VDC or 18-35VAC/DC
• Current Consumption: Approx. 30mA
• Output Contact Rating: 5A @ 28VAC or DC Maximum
• Output Modes: Momentary / Constant
• Factory Output Setting: Momentary
• Security Modes: High / Normal
• Factory Security Setting: High
• Known Compatible Transmitter Families: LIFTMASTER 390 MHz Security+ Transmitters
• Known DIP Remote Compatibility: 61LM in Compatible Normal-Security Applications
• Legacy Accessory Transmitter Families: Series 50 / 60 / 70 / 80 / 90 and Applicable 900-Series Transmitters
• Application: Gate Operators / Commercial Door Operators / Compatible Access Systems
• Product Generation: Legacy 390 MHz Radio Platform

IMPORTANT: Verify that the transmitter is 390 MHz and uses a radio format supported by the 412HM. A 315 MHz Security+ transmitter intended for the 312HM will not be compatible.

IMPORTANT: Constant-contact operation is intended only for appropriate commercial applications. Use momentary output for standard residential garage door control applications.
