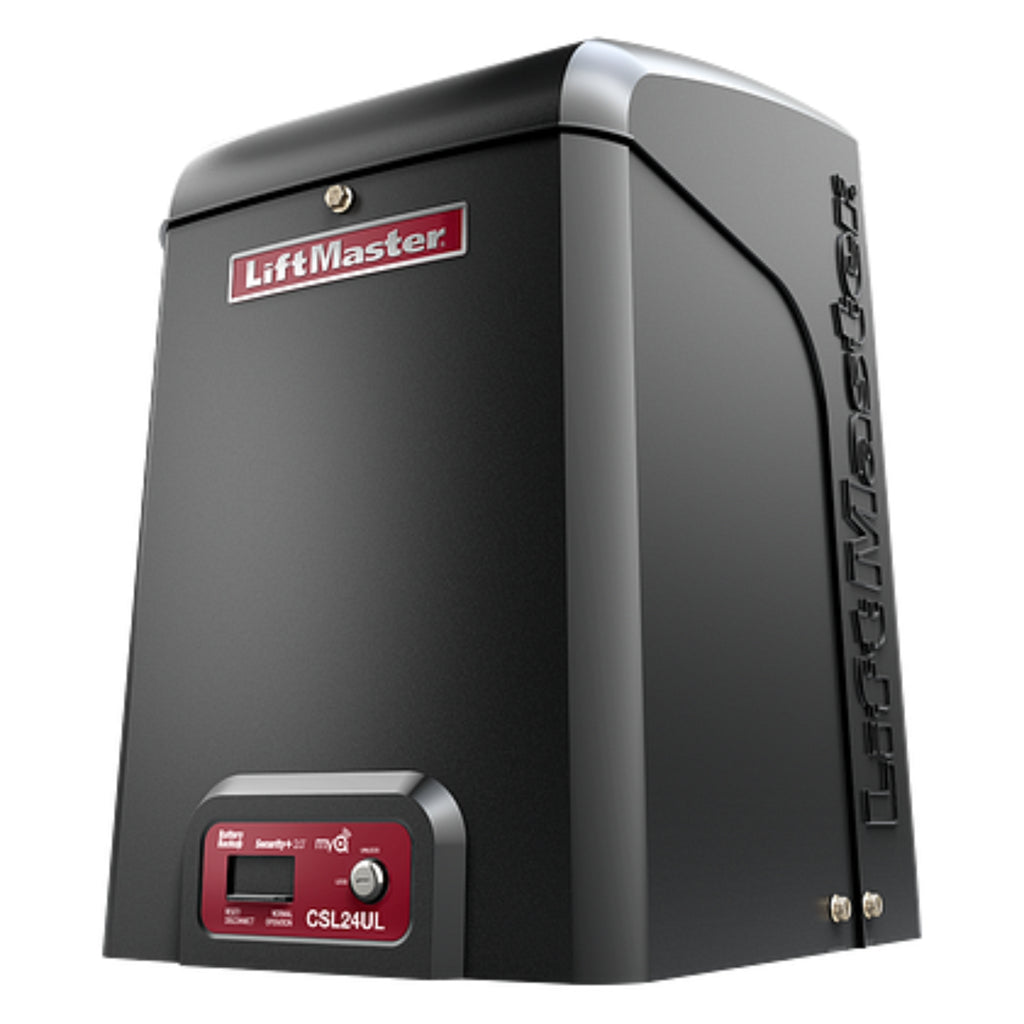

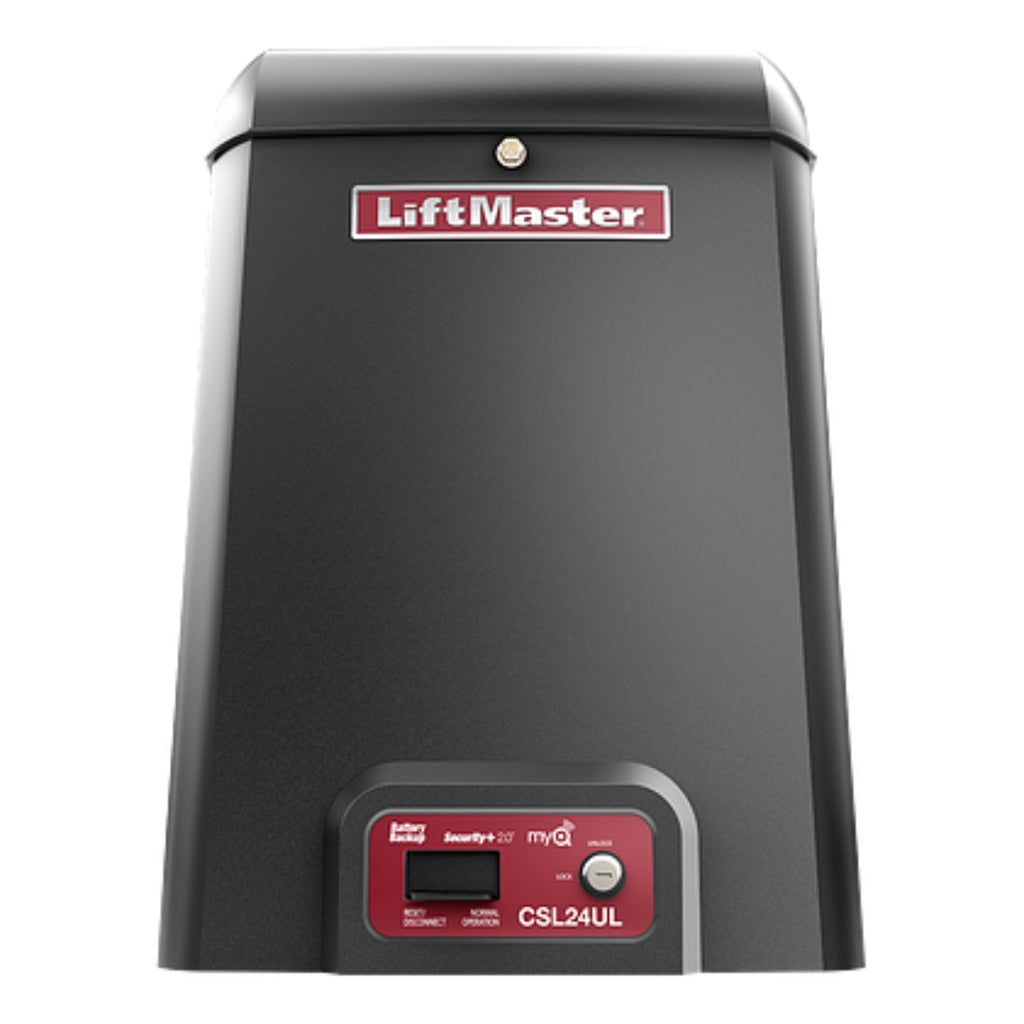

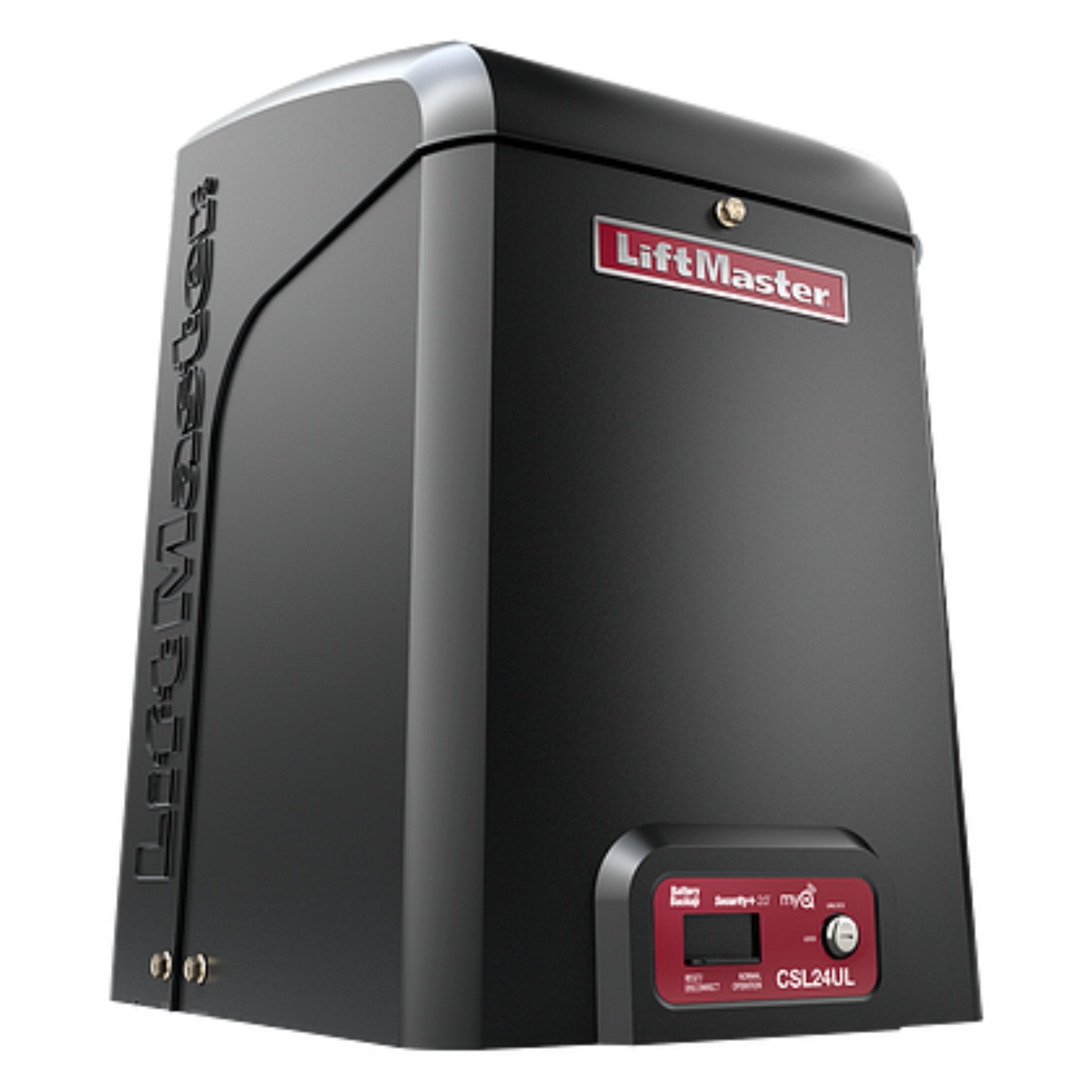

LiftMaster CSL24UL 24VDC High Traffic Commercial Slide Gate Operator

See all of our Gate Accessories See all of our Gate Hardware

Reliable
Battery Backup provides seamless access by providing standby power when the power is down.
Commercial Gear-Driven Transmission provides unsurpassed reliability.
Smooth start/stop operation and mid-travel reversal extend operator hardware life.
Warranty 5 years commercial, 7 years residential.

Smart
myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
Wireless Dual-Gate Communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs.

Safe and Secure
Safeguards access to property with an encrypted signal to offer extended range with Security+2.0.
Quick Close and Anti-Tailgate quickly secures the property, preventing unauthorized access.
Fire Department Compliance allows gate to auto-open upon loss of ac power or battery depletion.
Manual Disconnect when unlocked allows gate to be opened manually.
UL® Listed gate operators with monitored safety entrapment protection devices.

Included Accessories
LMRRUL Monitored Retro Reflective Photo Eye enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.
S505AL Monitored Small Profile resistive edge pressure-sensitive edge stops and/or reverses gate when obstructed.

Mechanics
24VDC Continuous duty
Operator Duty Rating: high-cycle, high-temperature continuous duty
Wormgear Reduction: Commercial oil-bath gearbox provides 10:1 Wormgear reduction
Chain: #41 Black Oxide (30ft. Supplied)

Power
120/230V single-phase
Optional Kit (3PHCONV) to convert an input voltage of 208/230/460/575VAC to an output voltage of 120VAC
Solar-Ready Ultra-Reliable System delivers power when and where you need it
Accessory Power: 24VDC 500mA output; switched and un-switched power

Commercial Grade Design
Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
Cover: high-density, UV-resistant polycarbonate 2-piece cover for excellent heat and corrosion resistance
UL® Usage Classification: I, II, III, and IV
Operator Weight: 140 lbs.

Dimensions

• Height: 25.07”
• Width: 15.55”
• Depth: 19.51”

Temperature Specifications When Cold:
Without heater: -4°F (-20°C)
With heater: (HTR) -40°F (-40°C)

Temperature Specifications When Hot:
Without heater: 140°F (60°C)
With heater: (HTR) 140°F (60°C)

Gate Speed
12” per second

Standard Features:
Inherent Reversing Sensor detects obstructions and reverses gate when closing or stops/reverses gate when opening
Posilock® automatically closes the gate when it is pushed from the closed limit
Monitored Safety Inputs 3 main board, 3 expansion board
Security+ 2.0® On-Board Radio Receiver up to 50 remote controls (unlimited with 811LM/813LM)
Led Diagnostic Display simplifies installation and troubleshooting
Programmable Auxiliary Relays make adding additional features easy
Homelink® Compatible version 4.0 or higher (May require an external adapter depending on the model and year of your vehicle. Visit HomeLink.com for additional information.) HomeLink® Compatible
Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.
HomeLink® is a registered trademark of Gentex Corporation.
